MT-50WXX-F6080-NJ-XXG Mismatch Termination
| Model | MT-50WXX-F6080-NJ-XXG |
| Frequency Range | F0±5% (F0 is the center frequency) |
| VSWR | 1.5、2.0、2.5、3.0、3.5、4.0 |
| VSWR Tolerance | ±5% |
| Rated Power | 50 W |
| Impedance | 50 Ω |
| Connector Type | N-M (J) |
| Dimension | 60.0×60.0×80.0mm |
| Operating Temperature | -55 ~ +125°C (See de Power De-rating) |
| Weight | / g |
| ROHS Compliant | Yes |
Use attention
Power De-rating
1、Dimensions Tolerance ±3%;
2、If necessary, the product shall be air-cooled for
auxiliary heat dissipation;
3、Custom designs available of other special
Coaxial Terminations;
4、Pay attention to the direction of the product during use and strictly prohibit reverse connection。

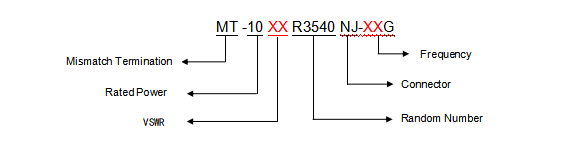

P/N Designation
