RFTXX-60AM6363B-3 Leaded Attenuator DC~3.0GHz RF Attenuator
| Model | RFTXX-60AM6363B-3 (XX=Attenuation value) |
| Impedance | 50 Ω |
| Frequency Range | DC~3.0GHz |
| VSWR | 1.25 max |
| Rated Power | 60 W |
| Attenuation Value | 01-10dB/16dB/20dB |
| Attenuation Tolerance | ±0.6dB/±0.8dB/±1.0dB |
| Temperature coefficient | <150ppm/℃ |
| Substrate Material | BeO |
| Porcelain Hat Material | Al2O3 |
| Lead | 99.99% Sterling Silver |
| Resistance Technology | Thick Film |
| Operating Temperature | -55 to +150°C (See de Power De-rating) |
Outline Drawing (Unit: mm/inch)
Lead length can be customized according to customer requirements
Dimensional tolerance: 5% unless otherwise stated

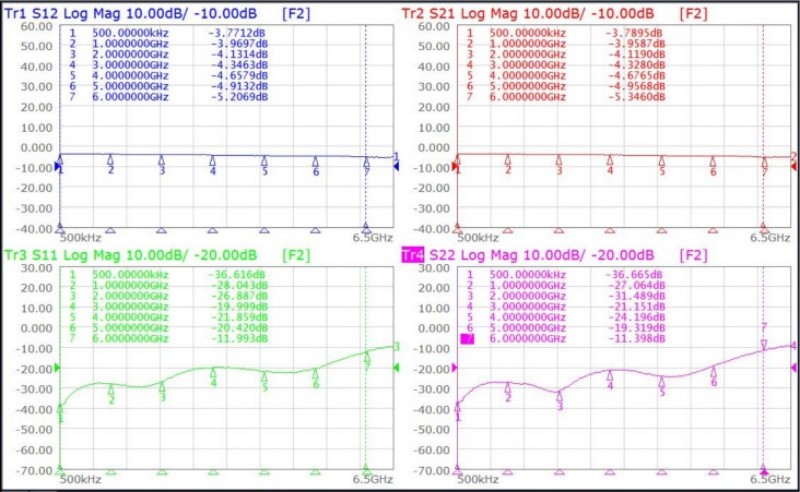

Typical Performance:
1dB Graph
8dB Graph
4dB Graph
20dB Graph
Installation method
Power De-rating
Reflow Profile
P/N Designation
Notice
■ After the storage period of newly purchased parts exceeds 6 months, attention should be paid to weldability before use. It is recommended to store in vacuum packaging.
■ The ground needs optimal heat transfer.
■ The manual welding lead should be used under a constant temperature soldering iron of no more than 350 degrees, and the welding time should be controlled within 5 seconds.
■ In order to meet the drawing requirements, it is necessary to install a sufficiently large radiator. Metal surfaces and radiators need to be coated with a very thin layer of thermal grease.
■ If necessary, add air or water cooling.
◆ Instructions：
■ Custom designed RF attenuators, RF resistors and RF terminals are available.
