RFT50-100CT6363 DC~5.0GHz RF Termination
| Model | RFT50-100CT6363 |
| Frequency Range | DC~5.0GHz |
| Power | 100 W |
| Resistance Range | 50 Ω |
| Resistance tolerance | ±5% |
| VSWR | DC~4.0GHz 1.20MaxDC~5.0GHz 1.25Max |
| Temperature coefficient | <150ppm/℃ |
| Substrate material | BeO |
| Resistance technology | Thick Film |
| Operating Temperature | -55 to +155°C (See de Power De-rating) |

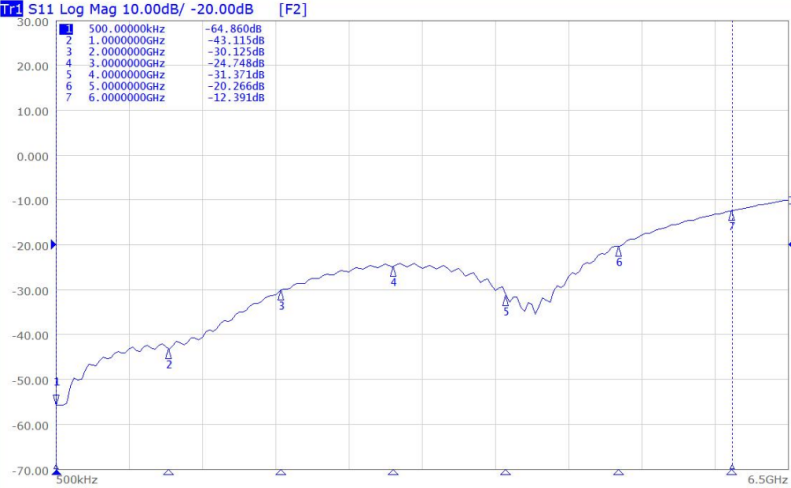

Typical Performance:
Installation method
Power De-rating
Reflow time and temperature diagram:
P/N Designation
Matters needing attention
■ After the storage period of newly purchased parts exceeds 6 months, attention should be paid to their weldability before use. It is recommended to store in vacuum packaging.
■ Drill out the hot hole on the PCB and fill the solder.
■ Reflow welding is preferred for bottom welding, please refer to Reflow introduction
■ The manual welding wire should be used under the constant temperature condition of 350 degrees or below, and the welding time should be controlled within 5 seconds.
■ In order to meet the requirements of the drawings, a radiator of sufficient size must be installed.
■ Add air cooling or water cooling if necessary.
◆ Description:
■ Custom designed RF attenuators, RF resistors and RF terminals are available.
